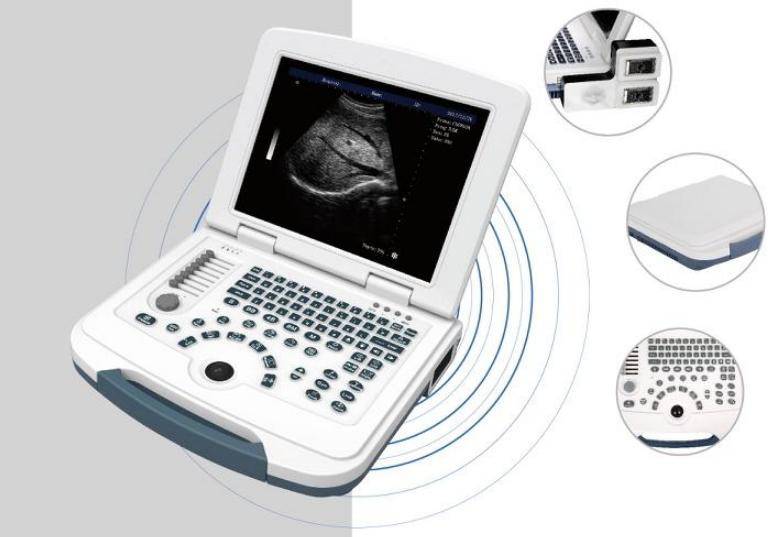

Basic Laptop Ultrasound Biagnostic System

Lightweight and portable, with a much clearer image and ease of use. The Basic Laptop Ultrasound Biagnostic System YC-580 has an extra-long battery life, with over 8 hours of standby time and 4 hours of working time - ideal for consultations in cities, towns, and outdoors. A variety of charging options are available to ensure examination consultation in a variety of settings.

Basic Laptop Ultrasound Biagnostic System  Probe frequency:

Convex probe
Frequency: 2.0MHz,2.5MHz,3.5MHz,4.0MHz,5MHz

Depth: 16 level 【126,142,158,173,189,197,205,213,221,229,237,245,253,261,269,307mm】
Linear probe
Frequency: 5.5MHz,6.5MHz,7.0MHz,7.5MHz,9.0MHz
Depth: 16 level 【35,42,49,62,69,76,83,90,97,104mm】
Trans-vaginal probe
Frequency: 5.0MHz,5.5MHz,6.5MHz,7.5MHz,8.5MHz
Depth: 16 level 【62,69,76,83,90,97,104,111,125,139mm】
Micro-convex probe
Frequency: 4.0MHz,4.5MHz,5.0MHz,6.5MHz,7.0MHz
Depth: 16 level 【62,69,83,97,111,125,139,152,166,180mm】

1. High-quality digital imaging technology, the image is clearer

2. Large capacity movie playback, automatic image loop demo

3. Compact size, clear image, easy to operate, strong endurance

Basic Laptop Ultrasound Biagnostic System  Parameters:
Probe Depth: 16 levels
Probe Frequency: 5 levels

Main gain: 0-100%
8 TGC: adjustable
Focus: 4
Image storage: 4920 images
Pseudo color: 0-7
Scanning area(angle): 3 levels
Edge enhancement: 0-3
Linear correlation: 0-5
Gamma correction: 0-7
Frame correlation: 0-3
Dynamic range: 0-135
Cine loop: 512 frames
Body mark: 97 kinds
U Disk support: FAT32 format

Image reversal: up/down, left/right, black/white

Measurement: General measurement, GYN & OB measurement package, Andrology measurement , Cardiac measurement

OB-1: GS,BPD,CRL,FL,HL,TAD,LV,OFD,AC,HC,AFI

OB-2: FTA,TTD,APTD,THD,TCD,CI,EFW,Input LMP,Growth Curve

Available ports: RS-232, VGA, VIDEO, USB *2, DICOM (preset)

Why choose us?

• We operate with integrity and honesty at all times, and our customers can trust us to provide them with the best possible product and service.
• The company encourages internal competition and innovation to create more high-quality and competitive products for customers.
• Our company is a Chinese factory that specializes in producing high-quality Digital Ultrasound Machines.
• Now the company's products are exported to many countries and regions at home and abroad, and have been well received by customers and affirmed by the industry. We have become one of the major Basic Laptop Ultrasound Biagnostic System suppliers in China.
• We pride ourselves on our quick response times and efficient customer service.
• Our company adopts international advanced production technology and high-quality raw materials.
• We are committed to building long-term relationships with our customers and earning their trust and loyalty.
• The company relies on the increasing domestic production technology and production cost advantages to carry out technical cooperation with foreign customers.
• Our customers trust us to provide them with high-quality Digital Ultrasound Machines that are safe, reliable, and effective.
• We aim at diversified property rights, market-oriented mechanism and intelligent industry, and accelerate reform, innovation and transformational development.

Hot Tags: basic laptop ultrasound biagnostic system, China basic laptop ultrasound biagnostic system manufacturers, suppliers
