Diagram of the 4 in 1 Portable Blood Analyzer

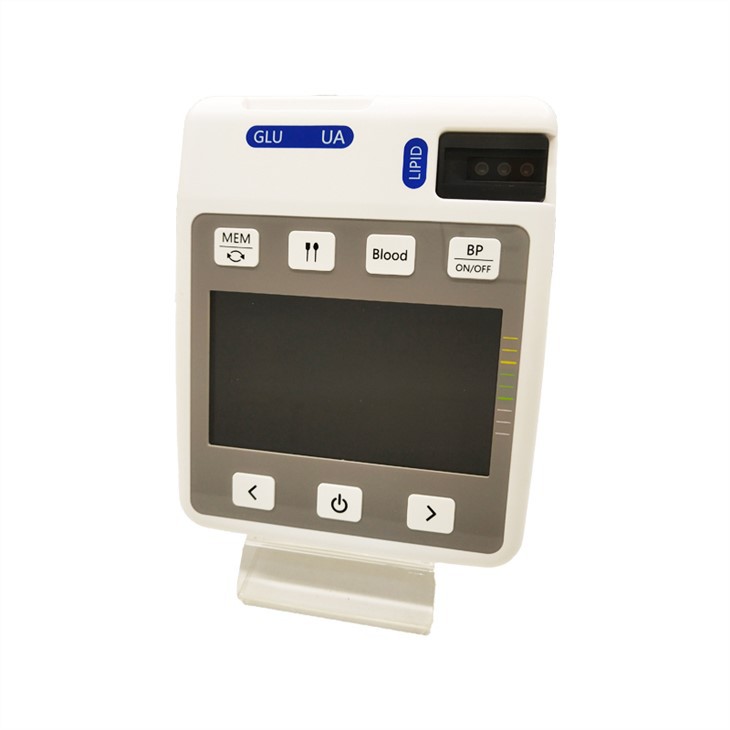

The 4 In1 Portable Blood Analyzer is a remarkable piece of technology that has been making waves in the medical industry since its inception. It is a compact device that is designed to analyze and measure various aspects of the blood, including glucose levels, cholesterol levels, hematocrit levels, and hemoglobin levels.
The beauty of this device lies in its portability and ease of use. It is small enough to fit into a pocket or bag, making it an ideal tool for healthcare professionals who work in remote or rural areas where access to medical facilities is limited. It is also incredibly easy to use, with simple instructions that can be followed by anyone, regardless of their level of expertise.
The 4 In1 Portable Blood Analyzer is also incredibly versatile, as it can be used to diagnose a wide range of medical conditions, including diabetes, anemia, and heart disease. It is an invaluable tool for doctors and nurses who need to quickly and accurately diagnose patients, allowing for timely and effective treatment.
Perhaps most importantly, the has the potential to save lives. With its ability to provide accurate and timely diagnoses, it can help healthcare professionals to identify and treat medical conditions before they escalate into more serious problems. This can mean the difference between life and death for many patients
Blood Lipid Test
You can press "Blood" key to select blood specimens:FB, VB and SP.
The blood drop symbol at LP on the screen flashes , indicating that specimens can be added. After adding specimens, the meter will automatically start testing, and the three lines will constantly flash.During this testing process, do not move 4 in 1 Portable Blood Analyzer or test strip, and do not press the operation key on the panel.
The detection is displayed after half a minute.. Press the left and right keys to query the TC/HDL and LDL data of blood lipids.
After the test is completed, take out the test strip, and the screen returns to the interface tobe tested for the next test.
Blood Glucose Test
pre-meal and post-meal selection can be carried out by "
" key; If you choose after meal, the after meal sign "
" will appear on the screen.
The blood drop symbol at GLU on the screen flashes , indicating that specimens can be added. After adding specimens, themeter will automatically start testing, and thethree lines will constantly flash. During this testing process, do not move themeter or test strip, and do not press theoperation key on the panel. The detection is displayed after the 5 minutescountdown is over .
Uric Acid Test
The blood drop symbol at UA on the screen
flashes , indicating that specimens can be added. After adding specimens, the
meter will automatically start testing, and the three lines will constantly flash . During this testing process, do not move the meter or test strip, and do not press the operation key on the panel.The detection is displayed after the 30 minutes countdown is over.
Blood Pressure Test
Avoid exercise, drinking or smoking before the test. Sit down and relax and rest for 5~10 minutes. Insert the arm band rubber tube plug into the meter, and wear the arm band correctly to ensure that the arm band is comfortable, not too tight or too loose. The lower edge of the arm band should be 1~2cm above the elbow. Place your arm on the table top and place a pillow or cushion under the arm to adjust the height. Be sure to keep the band at the same level as the heart. Turn on, tie the Blood pressure cuff and press the "BP" key to start blood pressure test when the meter does not conducted blood specimen test). After the rated pressure is reached during the test, the pump stops inflation and starts to release pressure slowly. If the appropriate pressure is not reached, the pump will continue to fill automatically until the rated pressure is reached. During the test process, when the heartbeat is detected, the heart rate icon on the screen will flicker. The screen displays high pressure, low pressure and heart rate after the meter completes the test .
Why choose us?
- Our factory is committed to collaborating closely with our customers to develop innovative solutions that meet their unique needs and challenges.
- Our company has established a 'customer-oriented, quality win' quality policy, the pursuit of first-class quality, first-class service to ensure high-quality products.
- Our factory utilizes the latest manufacturing techniques and processes, ensuring that our products are always on the cutting-edge of the industry.
- Our company provides customers with one-stop supporting services. 4 In1 Portable Blood Analyzer's research and development, customization, proofing, sales, and other service links are completed by a professional team. Our aim is "fast, efficient, environmentally friendly, and professional". Sophisticated manufacturing, complete specifications, and perfect after-sales services make us popular.
- Our Multifunction Analysis Meters are designed to be highly efficient and effective, helping our customers to save time and money.
- We continue to strengthen product development, promote sales and do a good job in quality management, maintain good quality and improve market reputation.
- We understand the importance of after-sales support, and we're committed to providing our customers with reliable and responsive service.
- Trust us, you will never lose heart.
- Our factory is equipped with state-of-the-art equipment and facilities, enabling us to produce Multifunction Analysis Meters efficiently and cost-effectively.
- Through a series of initiatives, we realized the improvement of the company's management system and promoted the quality of 4 In1 Portable Blood Analyzer.
Hot Tags: 4 in1 portable blood analyzer, China 4 in1 portable blood analyzer manufacturers, suppliers
