Portable Urine Analyzer

Portable Urine Analyzer incorporates cutting-edge technology such as optics, electronics, and computers. The optical system uses the reflection measurement principle of an ultra-high brightness cold light source, has been upgraded from a single wavelength visible light gray recognition to color recognition of visible lights, improves optical system resolution, greatly reduces the influence of environmental light on testing, and excludes traditional urine analyzer urine color interference phenomenon.

Test strips that are compatible with this Portable Urine Analyzer: USR-10T, URS-11-III, H-12MA, URS-14 urine reagent test strips.

1. Press the power button to activate the Portable Urine Analyzer, which then enters the boot self-test mode. This stage primarily detects mechanical, optoelectronic, and storage components. If there is an issue with the analyzer, the fault will be displayed.

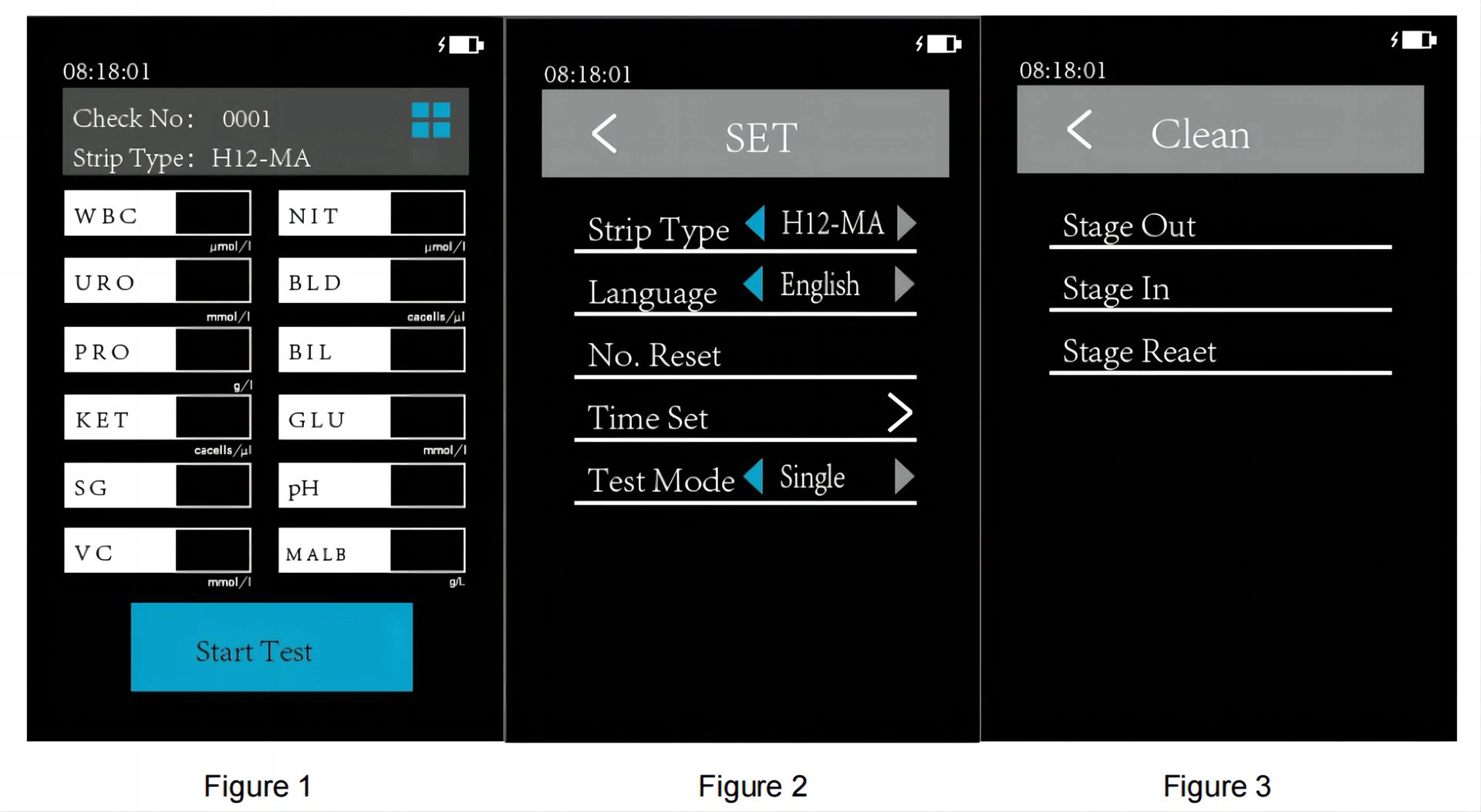

2. When the self-test is completed, the ENTER button appears at the bottom of the screen. To enter the main test interface, press ENTER (Figure 1).

3. After you've entered the main test interface, select the "menu" button in the upper right corner to access the menu interface. On which settings, query, debugging, calibration function keys, and other keys are displayed

Analyzer(1 piece) ;                            Date cable (1 piece);

Charger(1 piece);                              Manual (1 piece);

Test Strips(Several);                        Calibration strip (2 pieces)

Printer (1 piece);                                Printed testing result （1 sheet ）

Test Principle: Principle of reflection measurement of ultra-high brightness cold light source

Test Urine parameters: LEU, NIT, URO, PRO, PH ,BLD, SG, VC, KET, BIL, GLU, MALB, CRE, CAL

Testing speed: single test is 60 strips/hour, continuously > 100 strips/hour

Power: <= 20w

Net weight: 230g

Outline size: 135mm*80mm*30mm

WIFI: connect to WiFi devices and transmit test results

Date Communication Interface Baud Rate: 9600bps

Language: English and Chinese
